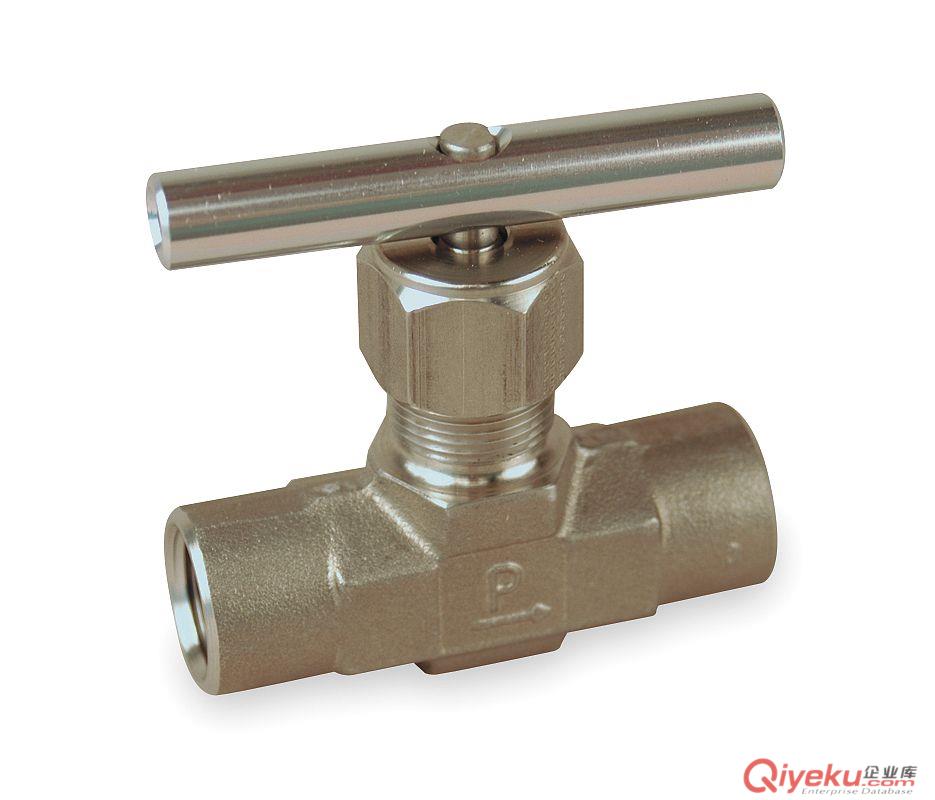

8F-V12LK-SS-GR针型阀-美国Parker（派克）阀门
价格： 电议 元卖家: 李江
咨询：
供货商：上海巨霞流体设备有限公司电 话：021-51099507
传 真：021-51099521
邮 箱：parker021@yeah.net
地 址：上海市奉贤区人民路58号
以上为8F-V12LK-SS-GR针型阀-美国Parker（派克）阀门详细参数信息，8F-V12LK-SS-GR针型阀-美国Parker（派克）阀门图片由上海巨霞流体设备有限公司提供，8F-V12LK-SS-GR针型阀-美国Parker（派克）阀门
- 产品特性
PRODUCT DETAILS
General-Purpose
Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.
Tested in accordance with ISA S75.02.
316 Stainless Steel
• Max. pressure: 5000 psig CWP
Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.
Instrumentation Needle Valves
Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.
Tested in accordance with ISA S75.02.
316 Stainless Steel
• Max. pressure: 5000 psig CWP
Packing above the stem thread (PAT) provides bubble-tight shutoff. Cold-formed body threads. Strain-hardened stem threads. PTFE seals.
Instrumentation Needle Valves
TECHNICAL SPECS
- ItemNeedle Valve
- Fitting StyleStraight
- Body Material316 Stainless Steel
- Pipe Size1/2"
- ConnectionFNPT
- Stem TypePCTFE
- Seal MaterialPTFE
- Handle MaterialNylon
- Max. Pressure5000 psi
- Temp. Rating-65 Degrees to 350 Degrees F
- Max. Flow1.29 gpm
- Max. Height4-17/64"
- Length2-49/64"
